Key statistics

130,000 diameter inches of shop fabricated spooling
25 pipe rack modules
1,500 tonnes of structural steelwork

Our brief

Inteforge was selected by Jacobs to provide detail drafting, supply, fabrication and delivery to project site of all steelwork, modularised pipe racks and shop fabricated pipe spooling for the Lubrizol petrochemical expansion in Deer Park.

Lubrizol Zeus Expansion

The solution

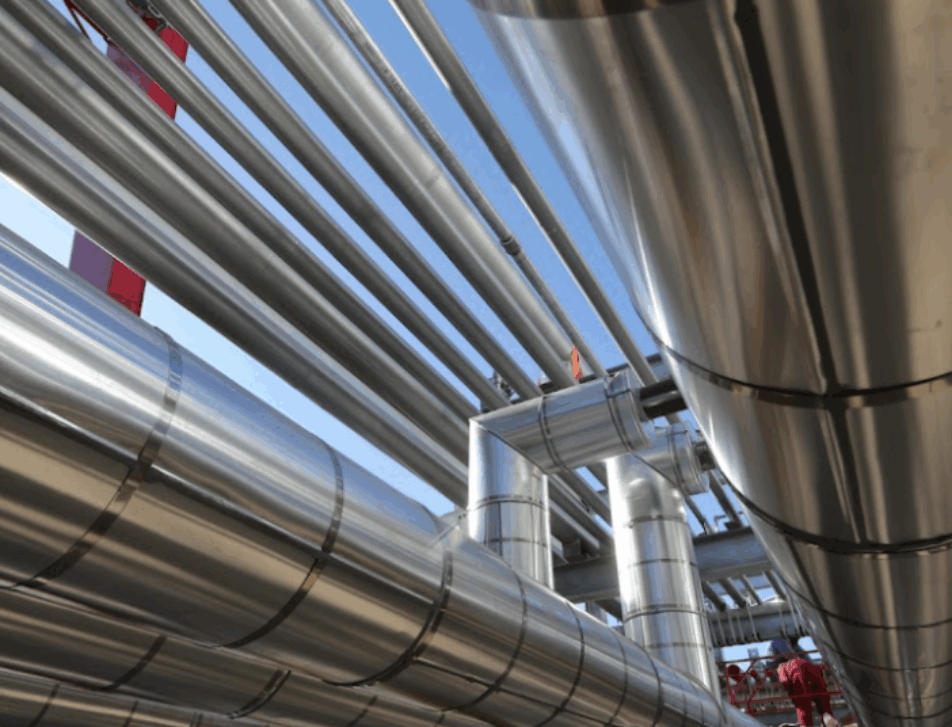

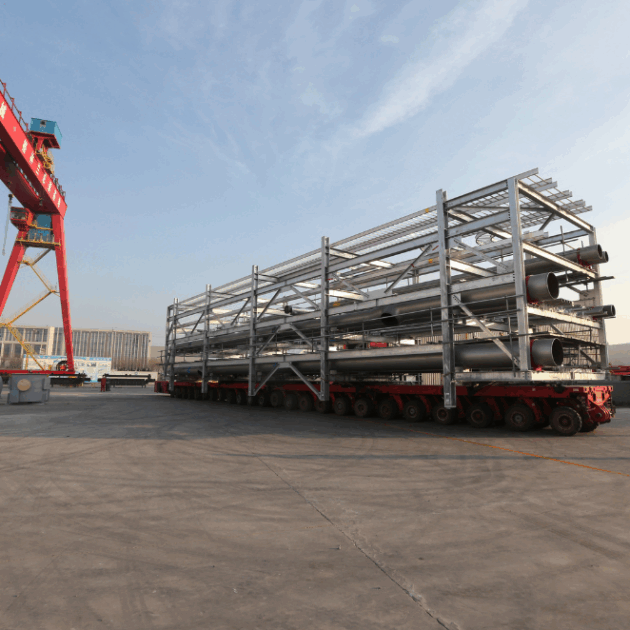

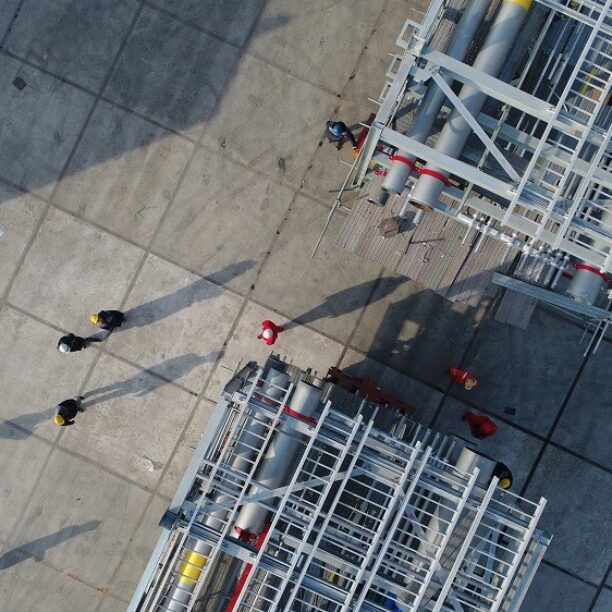

Inteforge carried out detail drafting, procurement, fabrication and full transport and shipping logistics of 25 preassembled modular pipe racks with heat and cryogenic insulation and steam tracing. We also developed transport and lifting arrangement for direct placement in position on site. With a low-level tolerance, the pipe racks required precise alignment at the shop to ensure seamless installation.
